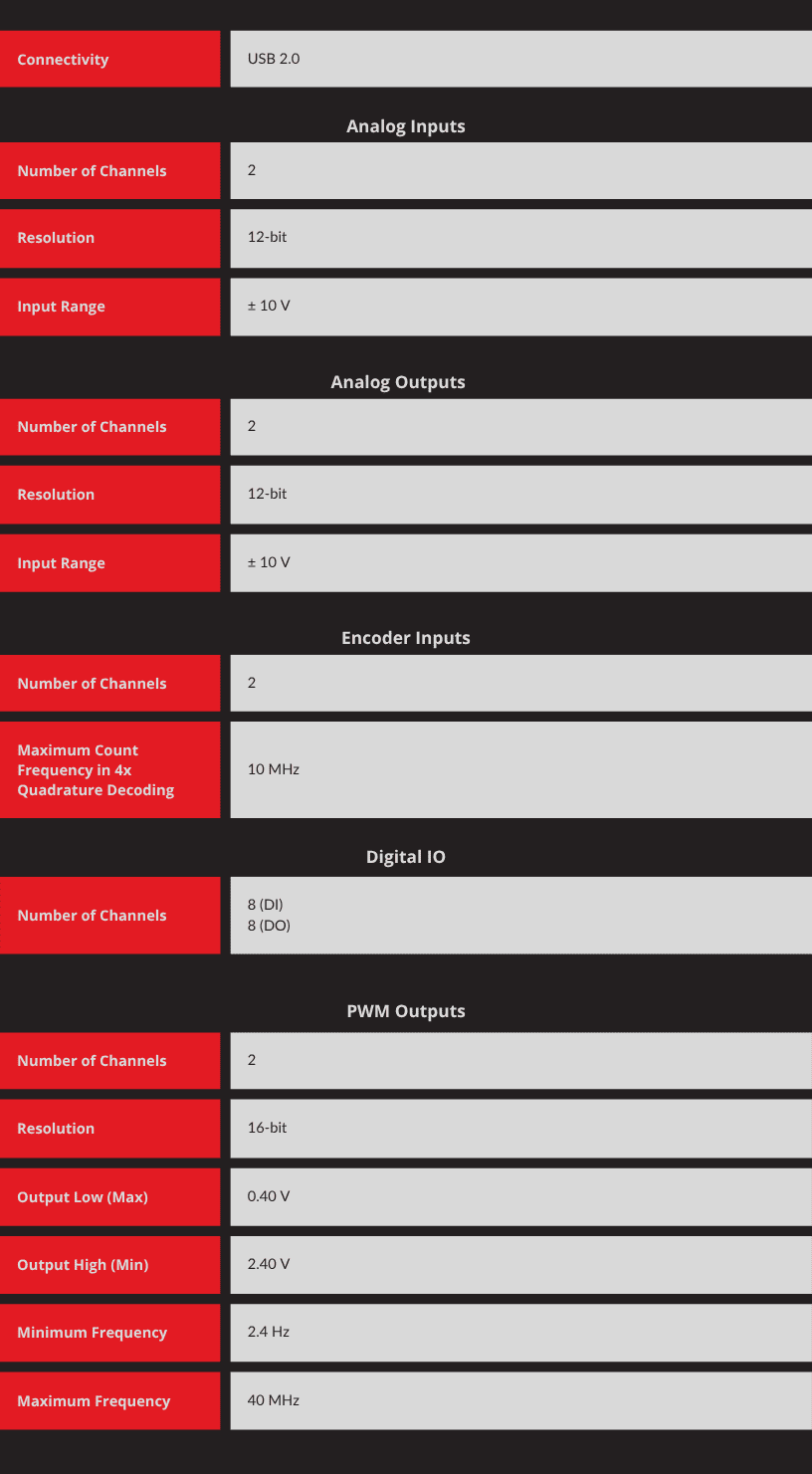

Product Details

System requirements Type A USB 2.0 connector (USB 2.0 driver is required)
Board dimensions (L x W x H) 8.5 cm x 10.2 cm x 1.8 cm
Analog inputs
Number of channels 2
Resolution 12-bit
Input range ± 10 V
Conversion time 250 ns¹
Input impedance 10 MΩ
Maximum full scale range (FSR) error ± 10 LSB
Analog outputs
Number of channels 2
Resolution 12-bit
Output range ± 10 V
Slew rate 3.5 V/μs
Conversion time 10 μs¹
DC output impedance 0.5 Ω
Short-circuit current clamp 20 mA
Maximum capacity load stability 4000 pF
Non-linearity ± 1 LSB
Maximum full scale range (FSR) error ± 12 LSB
Maximum load for specified performance 2 kΩ
Digital inputs
Number of digital I/O lines 8
Input low / high 0.66 V / 2.31 V
Input leakage current ± 2 μA
Digital outputs
Number of digital I/O lines 8
Output low / high 0.4 V / 2.40 V
Maximum drive current ± 4 mA
Encoder inputs
Number of encoder inputs 2
Input low / high 0.66 V / 2.31 V
Input leakage current +/- 2 μA
Maximum A and B frequency in quadrature 6 MHz
Maximum count frequency in 4x quadrature 10 MHz
PWM outputs
Number of PWM outputs 2²
Output low (max) / high (min) 0.40 V / 2.40 V
Minimum frequency 2.385 Hz
Maximum frequency 40 MHz
Bits resolution 16 bits³

¹ the effective conversion time is limited by USB communications at a 125 μs
² shared with the digital outputs
³ depends on the frequency selected for the PWM
