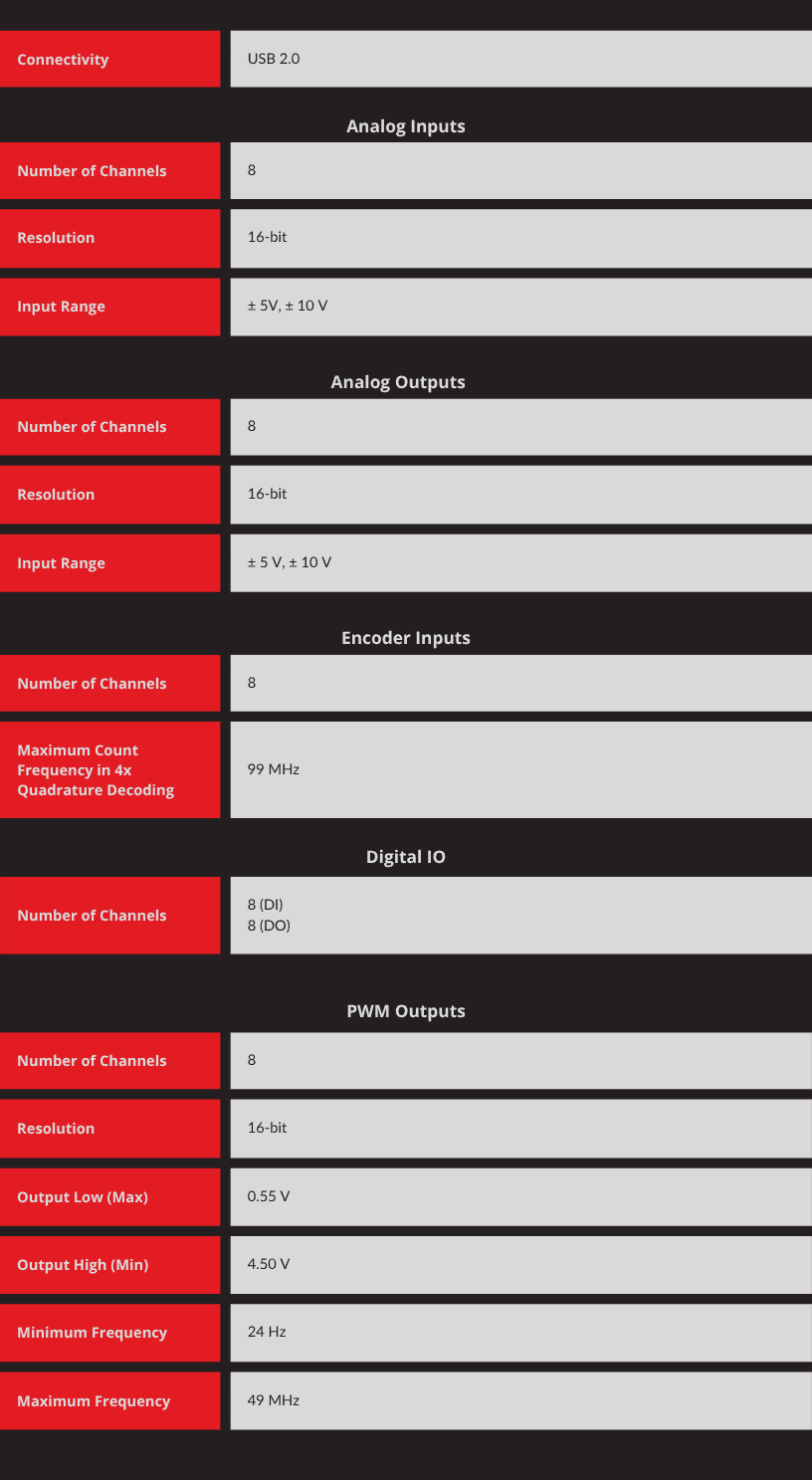

Product Details

System requirements Type A USB 2.0 connector (USB 2.0 driver is required)
Board dimensions (L x W x H) 22.8 cm x 16.8 cm x 3.4 cm
Analog inputs
Number of channels 8
Resolution 16-bit
Input range ± 5V, ± 10 V
Conversion time 4 µs¹
Input impedance 1 MΩ
Maximum full scale range (FSR) error ± 12 LSB, ± 6 LSB
Analog outputs
Number of channels 8
Resolution 16-bit
Output range ± 10.8 V, ± 10 V
±  5 V, 10.8 V
10 V, 5 V
Slew rate 3.5 V/μs
Conversion time 10 μs¹
DC output impedance 0.5 Ω
Short-circuit current clamp 20 mA
Maximum capacity load stability 4000 pF
Non-linearity ± 1 LSB
Maximum full scale range (FSR) error ± 65 LSB
Maximum load for specified performance 2 kΩ
Digital inputs
Number of digital I/O lines 8
Input low / high 1.5 V / 3.5 V
Input leakage current ± 2 μA
Digital outputs
Number of digital I/O lines 8
Output low / high 0.55 V / 4.50 V
Maximum drive current ± 32 mA
Encoder inputs
Number of encoder inputs 8
Input low / high 1.5 V / 3.5 V
Input leakage current +/- 2 μA
Maximum A and B frequency in quadrature 24.883 MHz
Maximum count frequency in 4x quadrature 99.532 MHz
PWM outputs
Number of PWM outputs
Output low (max) / high (min) 0.55 V / 4.50 V
Minimum frequency 23.7309 Hz
Maximum frequency 49.766 MHz
Bits resolution 16 bits³

¹ the effective conversion time is limited by USB communications at a 125 μs
² shared with the digital outputs
³ depends on the frequency selected for the PWM
