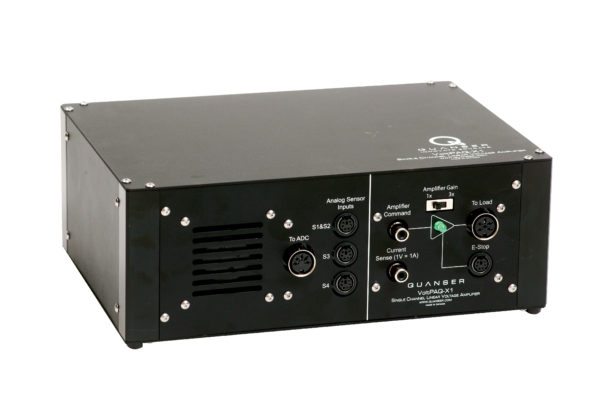

VoltPAQ-X1 Amplifier
VoltPAQ amplifiers deliver the reliable real-time performance necessary for modern Hardware-In-The-Loop
The VoltPAQ family of amplifiers are designed to achieve high performance with Hardware-In-The-Loop (HIL) implementations. The VoltPAQ linear voltage-controlled power amplifiers can drive Quanser experiments or other actuators through easy-connect terminal boards and cables.
Learn MoreProduct Details

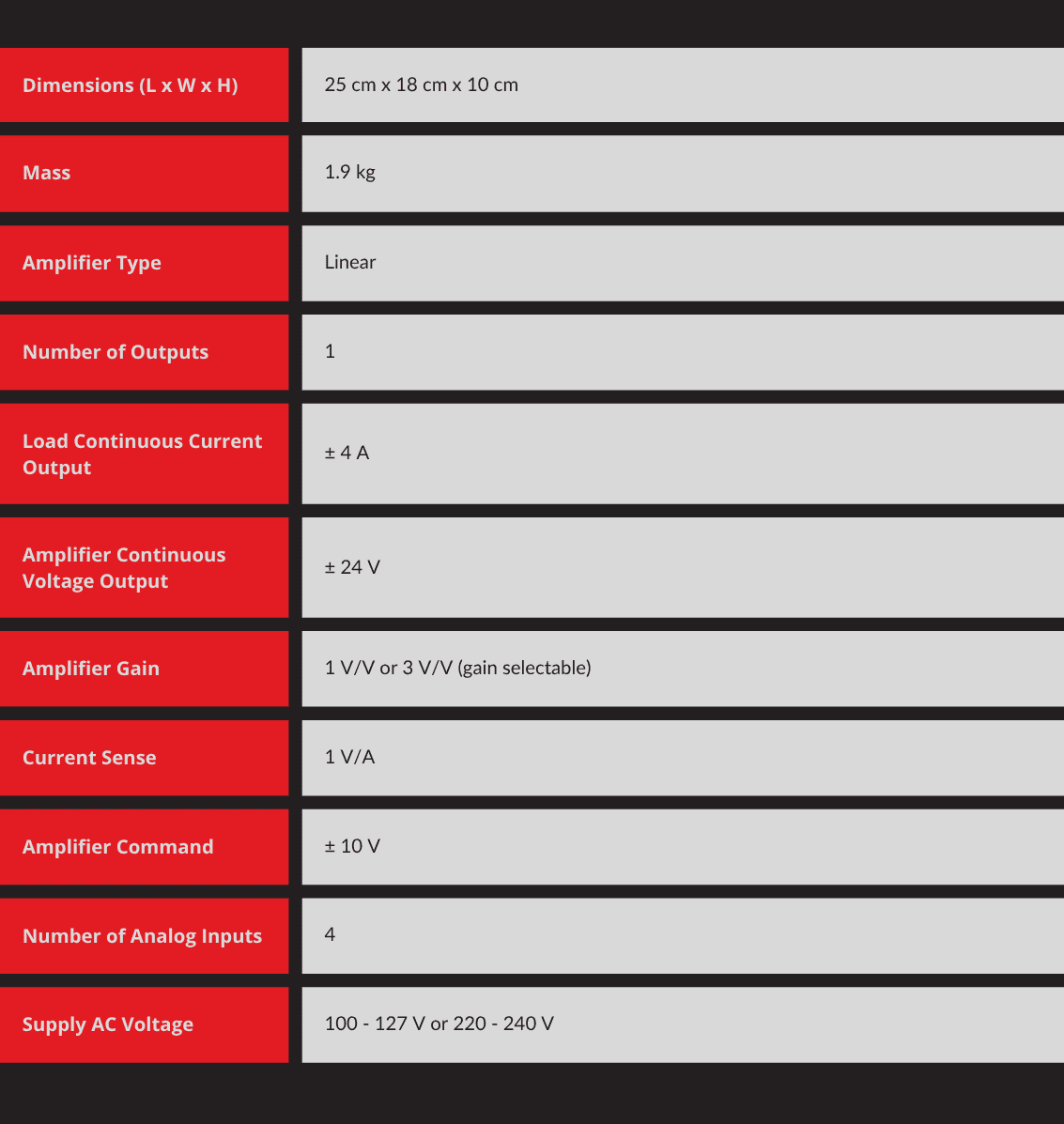

| Dimensions ( L x W x H) | 25 cm x 18 cm x 10 cm |
| Mass | 1.9 kg |
| Amplifier type | linear |
| Number of outputs | 1 |
| Load continuous current output | ± 4 A |
| Amplifier continuous voltage output | ± 24 V |
| Amplifier gain | 1 V/V or 3 V/V (gain selectable) |
| Current sense | 1 V/A |
| Amplifier command | ± 10 V |
| Number of analog inputs | 4 |
| Supply AC voltage | 100 – 127 V or 220 – 240 V |
