AMPAQ-L4 Amplifier

Home / Solutions / Amplifiers / AMPAQ-L4 Amplifier

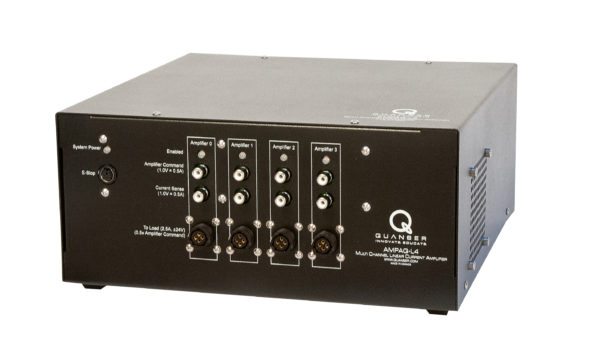

AMPAQ-L4 four channel linear current amplifier

AMPAQ-L4 Amplifier

The AMPAQ-L4 linear current amplifier is ideal for mechatronic systems requiring responsive current control, such as haptics or robotics platforms, or other complex controls configurations often used for teaching and research.

Learn More

Request a Quote

Product info sheet

Research Papers

Product Details

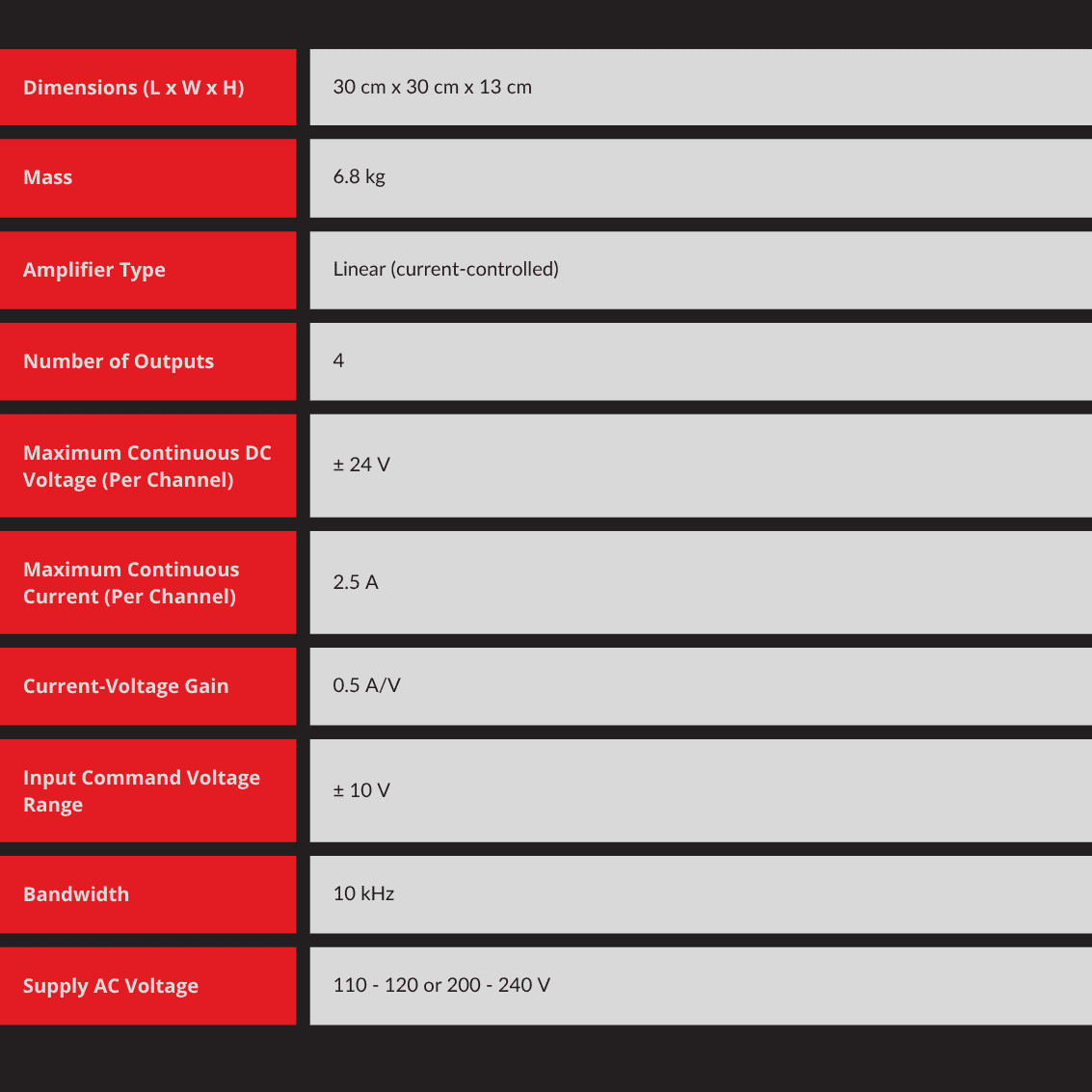

Specifications

Dimensions ( L x W x H)	30 cm x 30 cm x 13 cm
Mass	6.8 kg
Amplifier type	linear
Number of outputs	4
Maximum continuous voltage output	± 24 V
Maximum continuous current	2.5 A
Amplifier gain	2.0 V/A
Current sense	0.5 A/V
Amplifier command	± 10 V
Bandwidth in current mode	10 kHz
Output impedance	< 0.2 Ω
Supply AC voltage	110 V or 220 – 240 V
