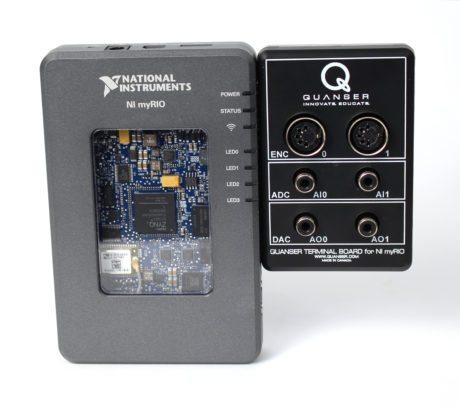

Quanser Terminal Board for NI myRIO

Connect Quanser experiments to your National Instruments myRIO

The Quanser Terminal Board for NI myRIO connects an NI myRIO device to Quanser control plants. It has two analog inputs, two analog outputs, and two single-ended encoder input interfaces. You can access all inputs and outputs simultaneously using unbuffered single-point reads and writes, which is ideal for real-time control. The convenient set of I/O and connectors minimizes setup time and connection errors, so students can concentrate on learning the fundamentals of hardware interfacing and control.

QTB_myRIO
Gallery
Documents

Product Details

The Quanser Terminal Board for NI myRIO connects an NI myRIO device to Quanser control plants. It has two analog inputs, two analog outputs, and two single-ended encoder input interfaces. You can access all inputs and outputs simultaneously using unbuffered single-point reads and writes, which is ideal for real-time control. The convenient set of I/O and connectors minimizes setup time and connection errors, so students can concentrate on learning the fundamentals of hardware interfacing and control.

Dimensions (L x W x H) 0.095 x 0.070 x 0.025 m
Weight 0.098 kg
I/O summary 2 ADCs, 2 DACs, 2 encoder inputs connected to 5 pin DINs
