Linear Flexible Inverted Pendulum
Electromechanical Control
The Linear Flexible Inverted Pendulum module augments the classic inverted pendulum challenge by including a flexible link that requires balancing. The Linear Flexible Inverted Pendulum module attaches to the Linear Servo Base Unit and has both a rigid long rod and a flexible link. The goal is to balance both pendulums using the base angle measurement as well the deflection angle of the flexible link.
Gallery
Product Details
The linear flexible inverted pendulum challenges students to gain advanced modeling and control experience by controlling both the damping of a flexible link, and an unstable inverted pendulum.

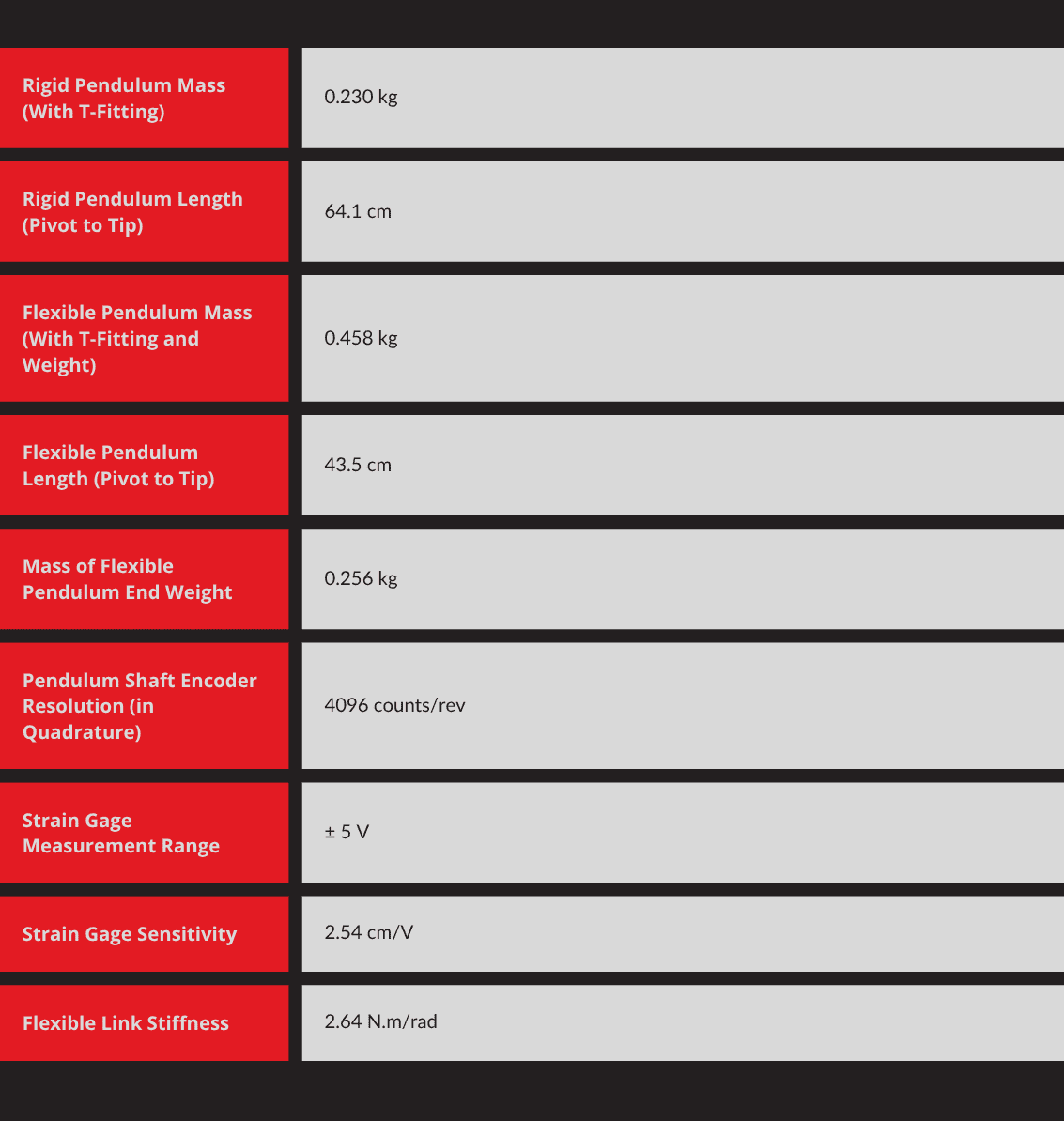

| Rigid pendulum mass (with T-fitting) | 0.230 kg |
| Rigid pendulum length (pivot to tip) | 64.1 cm |
| Flexible pendulum mass (with T-fitting and weight) | 0.458 kg |
| Flexible pendulum length (pivot to tip) | 43.5 cm |
| Mass of flexible pendulum end weight | 0.256 kg |
| Pendulum shaft encoder resolution (in quadrature) | 4096 counts/rev |
| Strain gage measurement range | ± 5 V |
| Strain gage sensitivity | 2.54 cm/V |
| Flexible link stiffness | 2.64 N.m/rad |
Modeling Topics
- Derivation of dynamic model using Lagrange
- State-space representation
- Linearization
Control Topics
- Linear-quadratic regulator (LQR)
The following additional components are required to complete your workstation, and are sold separately:
For Simulink
- QUARC® add-on for MATLAB®/Simulink®
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
For LabVIEW
- Quanser Rapid Control Prototyping (Q-RCP) Toolkit® add-on for NI LabVIEW™
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- NI CompactRIO with Quanser Q1-cRIO
- NI myRIO with Quanser Terminal Board
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
