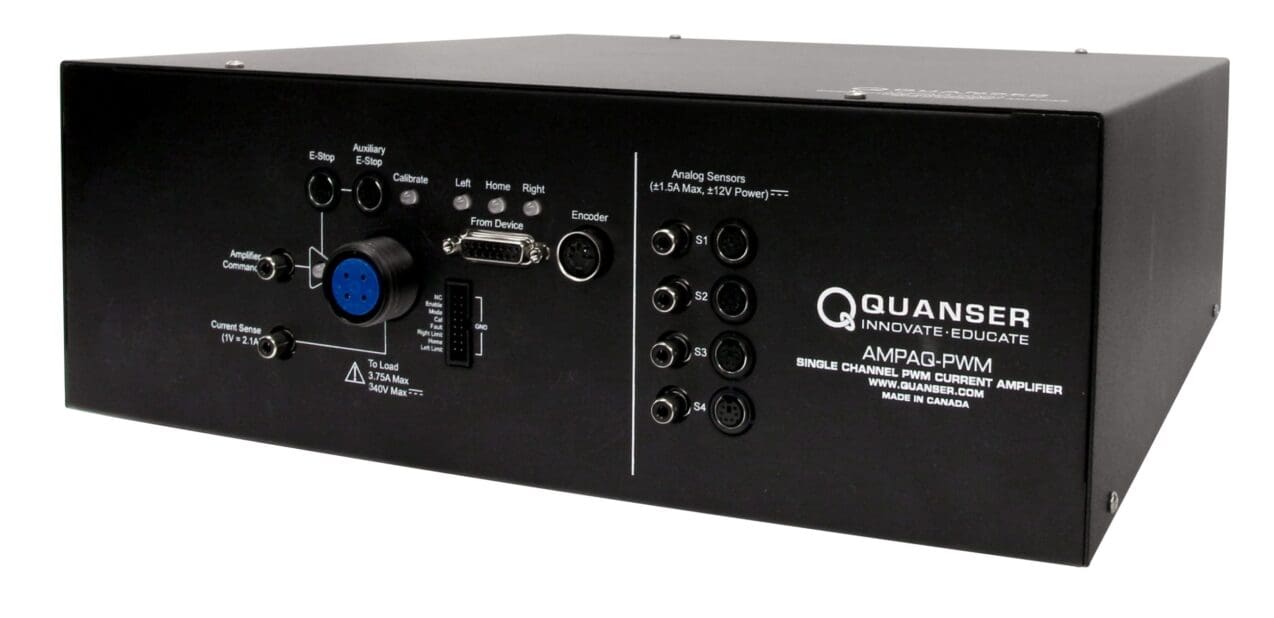

AMPAQ-PWM Amplifier
Powerful and versatile linear current amplifier for high-powered systems
Amplification
The Quanser AMPAQ-PWM is a single-channel pulse width modulated current amplifier designed to drive high-powered systems such as the Quanser Shake Table II. The amplifier features a generic data acquisition board interface and current sensing capability.
Product Details
The Quanser AMPAQ-PWM is a single-channel pulse width modulated current amplifier designed to drive high-powered systems such as the Quanser Shake Table II. The amplifier features a generic data acquisition board interface and current sensing capability.
| Dimensions (L x W x H) | 39 cm x 39 cm x 14 cm |
| Mass | 10.4 kg |
| Amplifier Type | DC power amplifier (duty cycle mode) |
| Number of Outputs | 1 |
| Maximum Continuous DC Voltage | 340 V |
| Maximum Continuous DC Current | 3.75 A |
| Continuous Output Power | 1200 W |
| Supply AC Voltage | 110 - 120 or 200 - 240 V |
