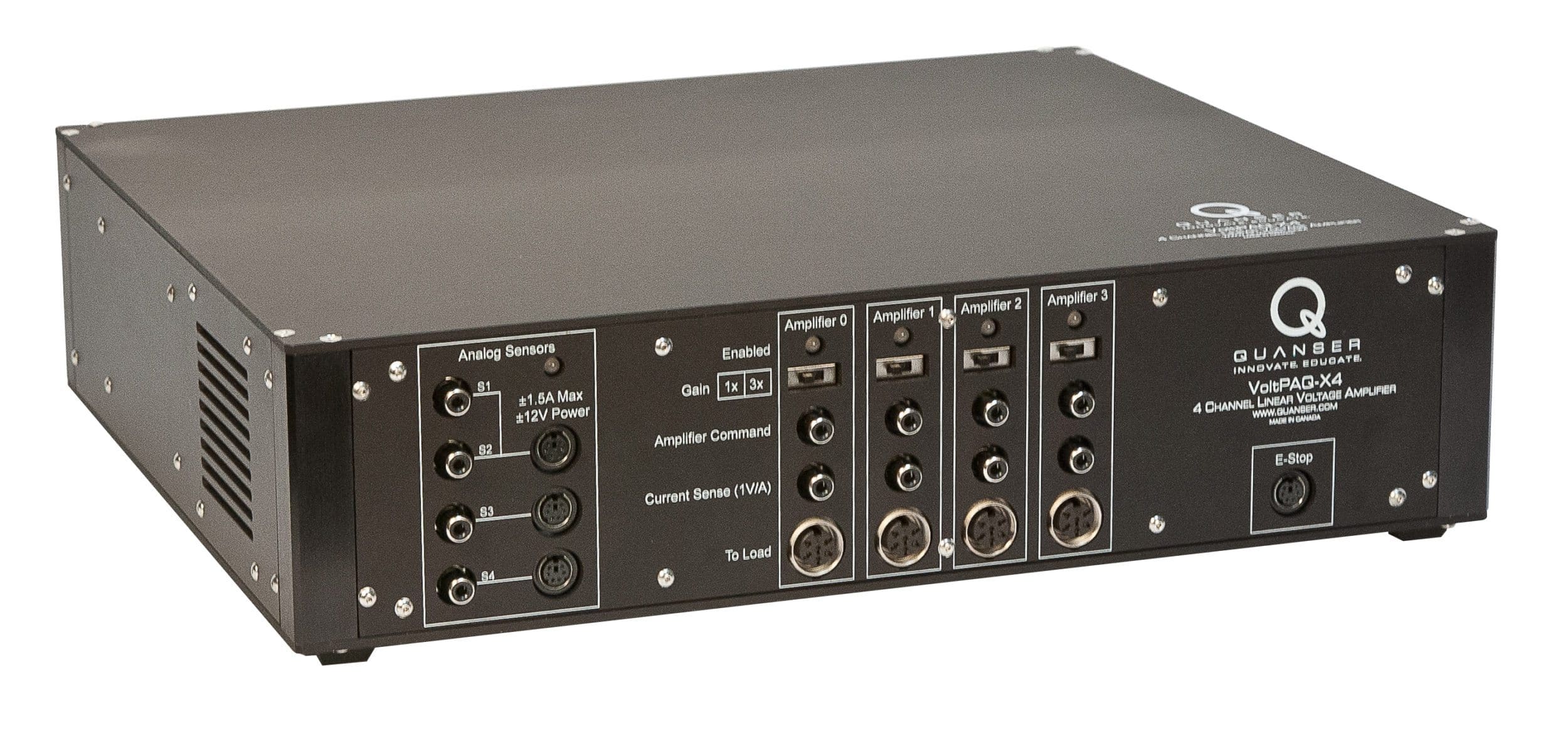

VoltPAQ-X4 Amplifier
Linear voltage amplifier ideal for all complex controls configurations
Amplification
The VoltPAQ-X4 is linear voltage-controlled amplifier ideal for all complex controls configurations related to educational or research needs. It is designed to achieve high performance with Hardware-In-The-Loop (HIL) implementations.
Product Details
The VoltPAQ-X4 is linear voltage-controlled amplifier ideal for all complex controls configurations related to educational or research needs. It is designed to achieve high performance with Hardware-In-The-Loop (HIL) implementations.
| Dimensions (L x W x H) | 39 cm x 33 cm x 10 cm |
| Mass | 5.4 kg |
| Amplifier Type | Linear |
| Number of Outputs | 4 |
| Load Continuous Current Output | ± 4 A |
| Amplifier Gain | 1 V/V or 3 V/V (gain selectable) |
| Current Sense | 1 V/A |
| Amplifier Command | ± 10 V |
| Number of Analog Inputs | 4 |
| Supply AC Voltage | 100 - 127 V or 220 - 240 V |
